SHOUT! is an active talkback pedal specially designed for the modern communication needs of technicians and musicians. SHOUT! is the first three-way audio switch pedal fully compatible with phantom power, allowing use with condenser microphones, optical gates, or any other powered source.
Its quality-focused design provides completely transparent signal switching with no unwanted noise or transients.
SHOUT! is made in France by active touring monitor engineers.
Active circuit: requires at least one output to receive phantom power.
Weight:
0.9Kg (2 lbs)
Dimensions LxDxH (inches):
7.95x4.76x2.24
Enclosure:
1.5mm stainless steel
Maximum input level:
3 dBV
Gain:
1.1 dB
Mute level:
-76 dB @ 2 kHz
Power rail:
1ch:30V, 2ch:36V, 3ch:40.7V
Active, and generous
SHOUT! allows selective activation of 48V phantom power on the microphone input, ensuring optimal compatibility with condenser microphones, active DI boxes, and optical gates.
This feature provides increased flexibility in terms of ergonomics and workflow, both for artists and technicians.
Signal switching remains silent, even with +48V active.
More than a simple switcher
SHOUT! integrates a set of features designed to simplify and optimize your workflow, including:
– Channel A switchable between Normally Open and Normally Closed modes, for optimal adaptability to your setup.
– Linking two SHOUT! units via the CAT5 TAIL/LINK port, allowing up to six directions with no signal loss or quality compromise.
– Connection to the TAIL breakout via the same CAT5 TAIL/LINK port, minimizing cable clutter and speeding up deployment.
Go further
Optimise, streamline.

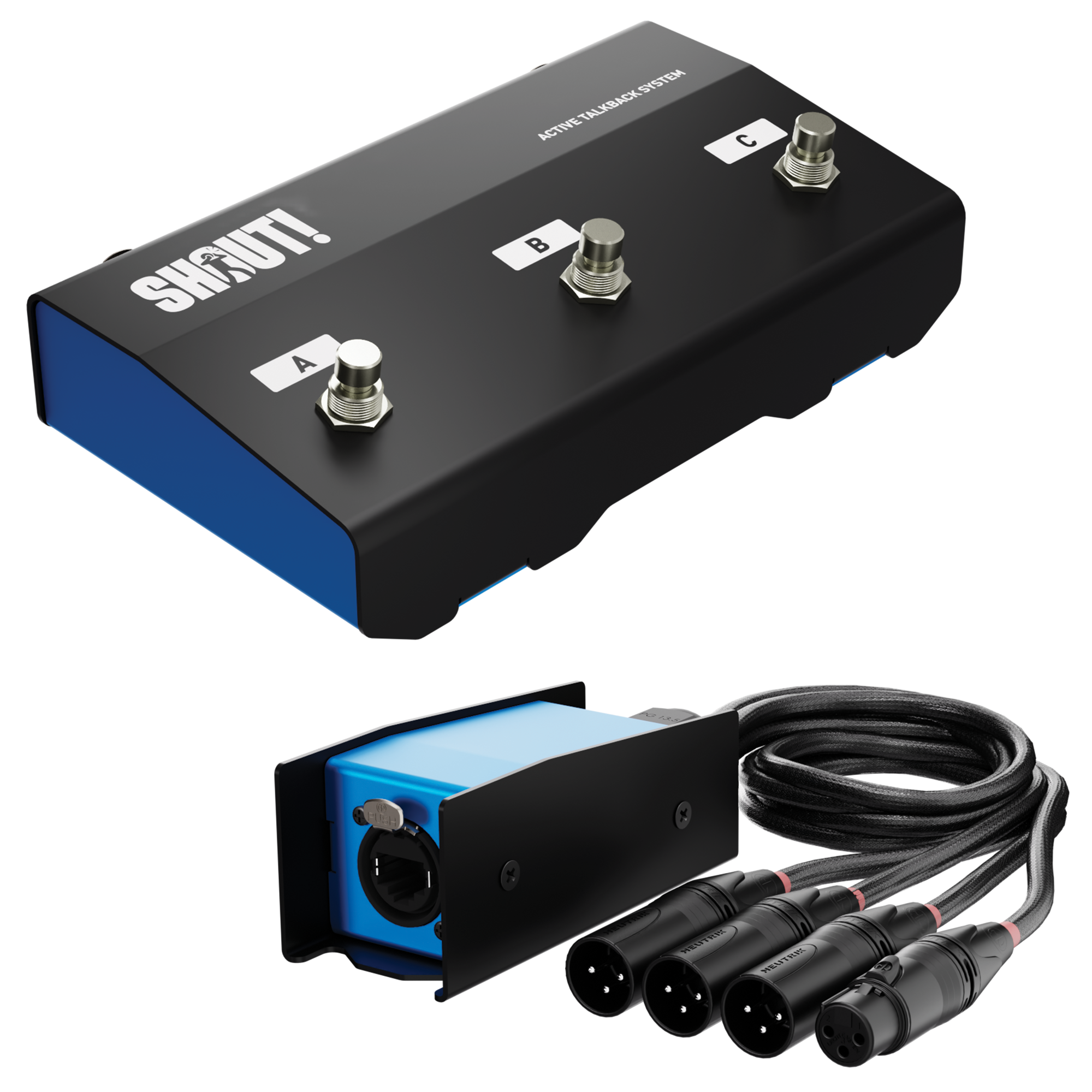

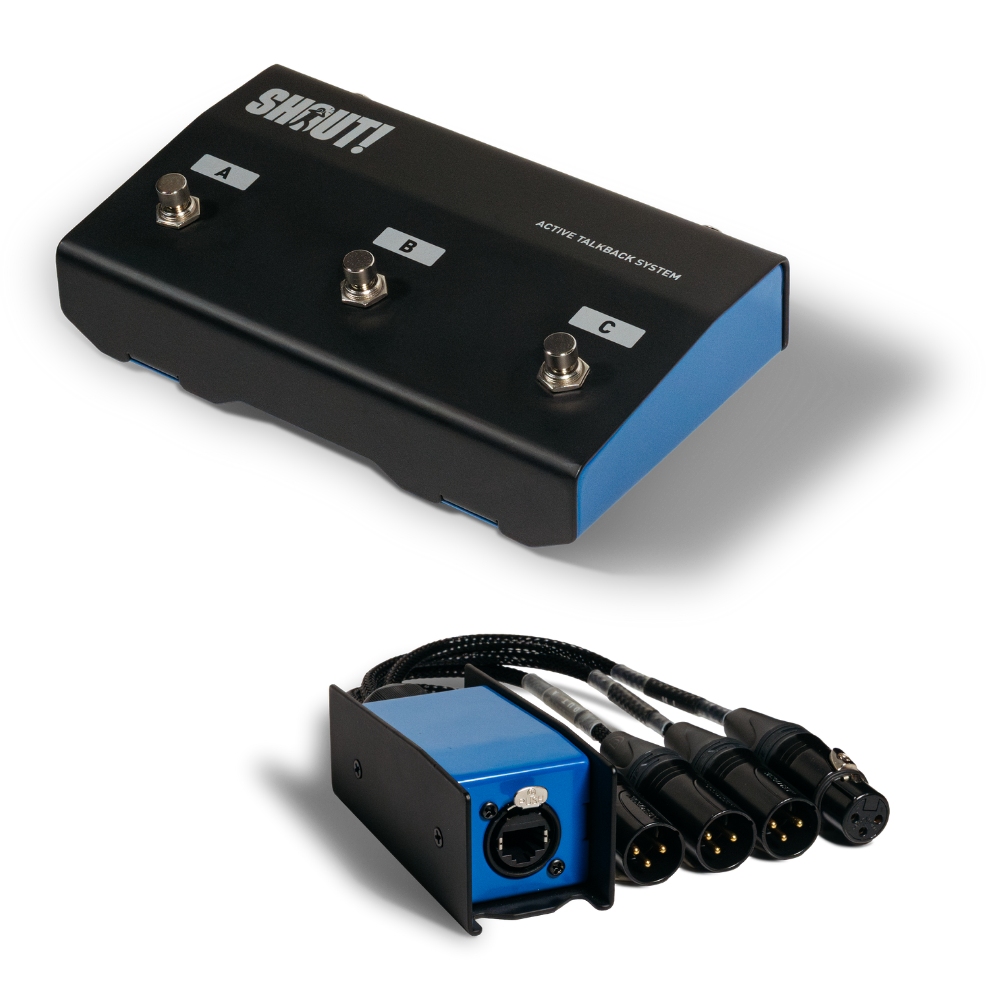

SHOUT! Touring pack
SHOUT! and TAIL were made to work together.
Designed with the same logic, built with the same level of precision.
TAIL is the natural companion to SHOUT!, for a fast, clean, and optimized setup.
No more messy cabling. No more connection doubts.
Everything becomes simple, obvious, instant.
Optimise your workflow
